USB is not active Nikon D5600 [solved - imperfect cable pushed in too far]
Posted: September 22nd, 2023, 5:21 pm
by MaxMaster1978
Hello together!
I recived my Unleashed N2 for my Nikon D5600 last saturday.
Today I was able to test the system.
First, the tool works together with the App and i could update the bluetooth module.
Second:
I have problems with the usb connection from the camera to the module.

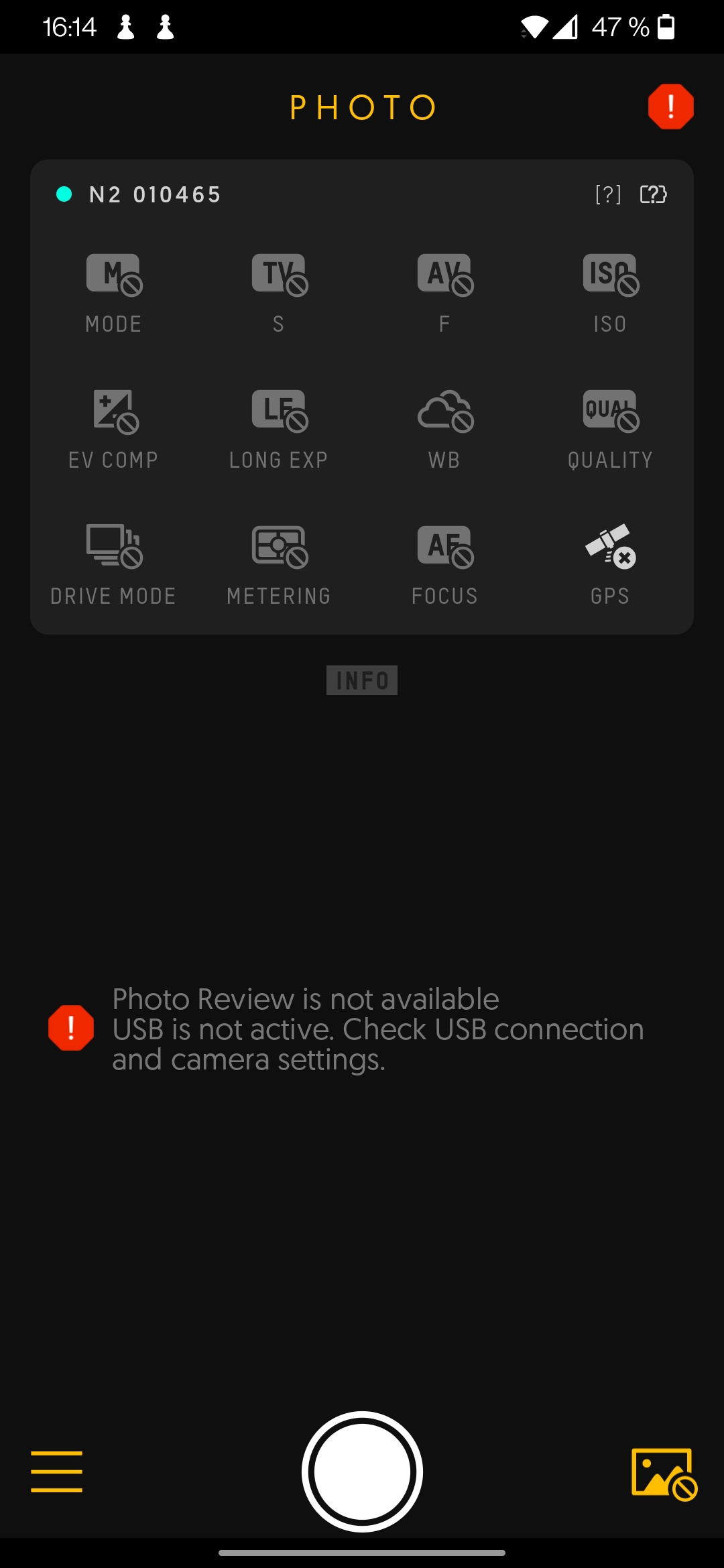

- Screenshot_20230922-161432.jpg (188.95 KiB) Viewed 2567 times
I need help!
Have anybody the same problems?
Thanks!
Lars
Re: USB is not active Nikon D5600
Posted: September 22nd, 2023, 5:28 pm
by sfphotogrphr
Have you only plugged the UNLEASHED into the camera or have you also plugged the USB cable?

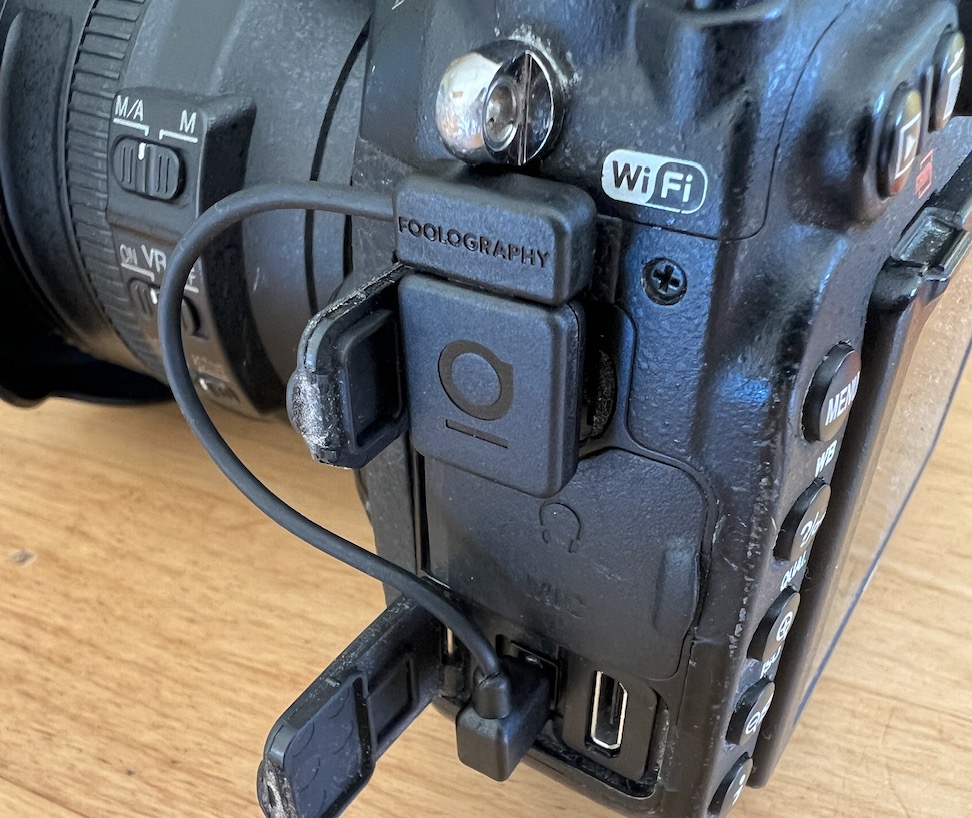

- Bildschirmfoto 2023-09-22 um 17.27.14.jpg (245.78 KiB) Viewed 2561 times
Re: USB is not active Nikon D5600
Posted: September 22nd, 2023, 6:02 pm
by MaxMaster1978

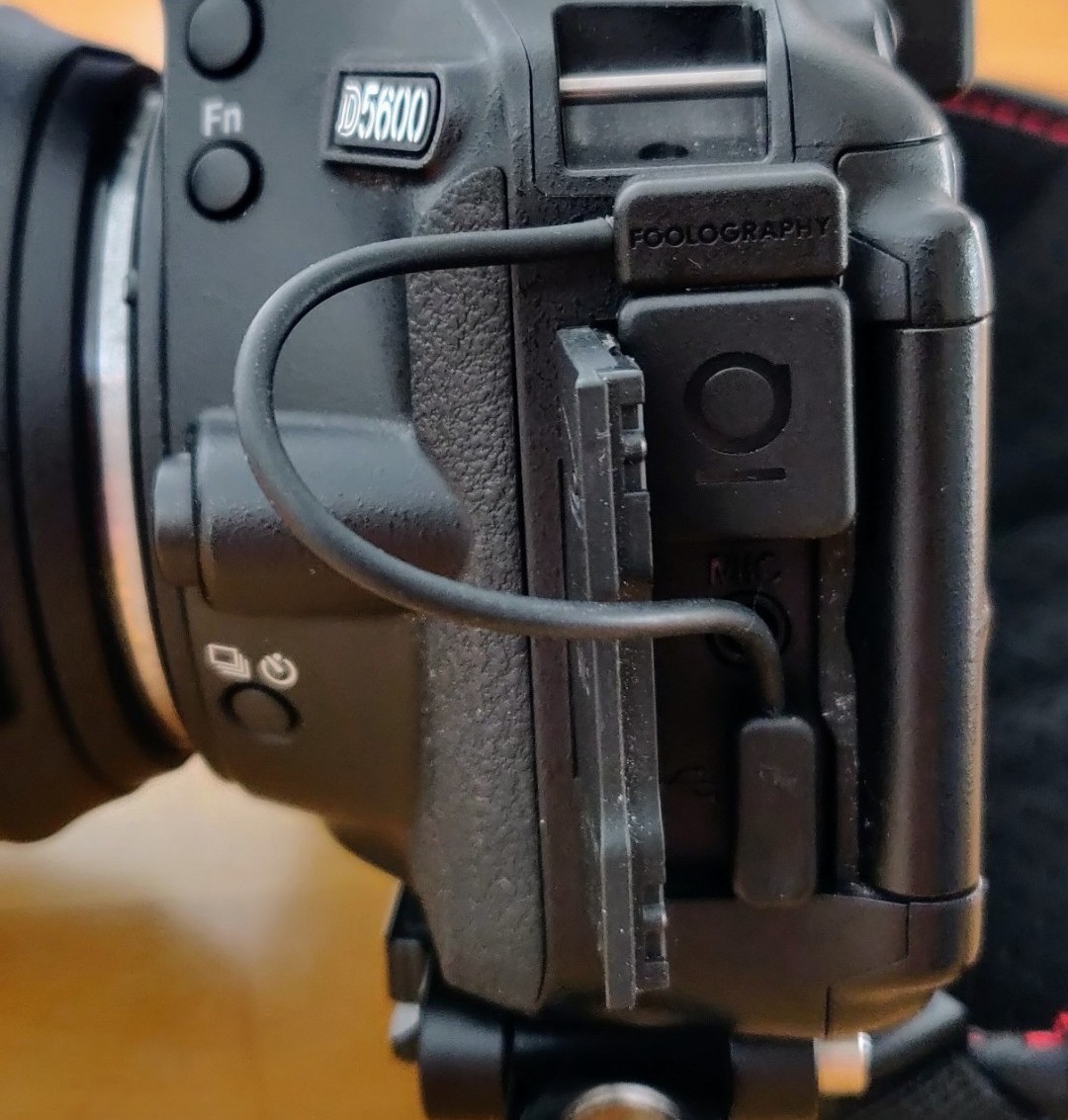

- Screenshot_20230922-171819~3.jpg (221.62 KiB) Viewed 2558 times
Yes i have placed the cable!
Re: USB is not active Nikon D5600
Posted: September 23rd, 2023, 12:42 am
by Oliver
Hmm, that's obviously not how it should be. Sorry for the trouble right from the start.
We’ve had a couple of usb cables where one of the pins very slightly protrude from the plug that plugs into the Unleashed, and if it gets plugged in as far as possible into the Unleashed, that pin can touch something metallic inside and cause it not to work properly. Very slightly unplugging that from the Unleashed by just a fraction of a millimetre (few thousands of an inch) fixes this issue. Could you try that and let me know if that solves your problem?
Just to rule out a problem with your camera: Could you test your camera's USB port by connecting it to a computer? on a Mac, open the program "Image capture" ("Digitale Bilder" in German), on Windows the camera should appear in the Explorer.
Re: USB is not active Nikon D5600
Posted: September 23rd, 2023, 1:09 pm
by MaxMaster1978
Thanks for the fast answering of my support question!

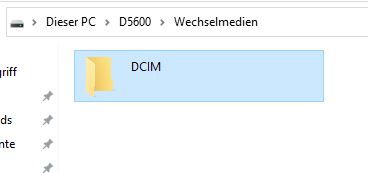

- Nikon.JPG (13.75 KiB) Viewed 2540 times
I have no problems to connect the camera with my windows PC!
Re: USB is not active Nikon D5600
Posted: September 24th, 2023, 1:28 pm
by Oliver
We’ve had a couple of usb cables where one of the pins very slightly protrude from the plug that plugs into the Unleashed, and if it gets plugged in as far as possible into the Unleashed, that pin can touch something metallic inside and cause it not to work properly. Very slightly unplugging that from the Unleashed by just a fraction of a millimetre (few thousands of an inch) fixes this issue. Could you try that and let me know if that solves your problem?
Did you try this too?
Re: USB is not active Nikon D5600
Posted: October 4th, 2023, 4:29 pm
by MaxMaster1978
We returned from vacation without being able to use the gadget :-(
Trying again, following your instructions, brought success and I was able to control the camera remotely. The transfer of the taken pictures was successful.
Apparently, the described PIN is the problem with my USB cable.
Is there a possibility to get a fully functional USB cable?
Thanks for the quick support!
The next days I will test the gadget extensively :-)
Greetings!
